Detailed introduction
Advanced induction heating technology for aluminum alloy melting and holding · Energy savings up to 40% · Capacity 200–1000 kg
Equipment Application

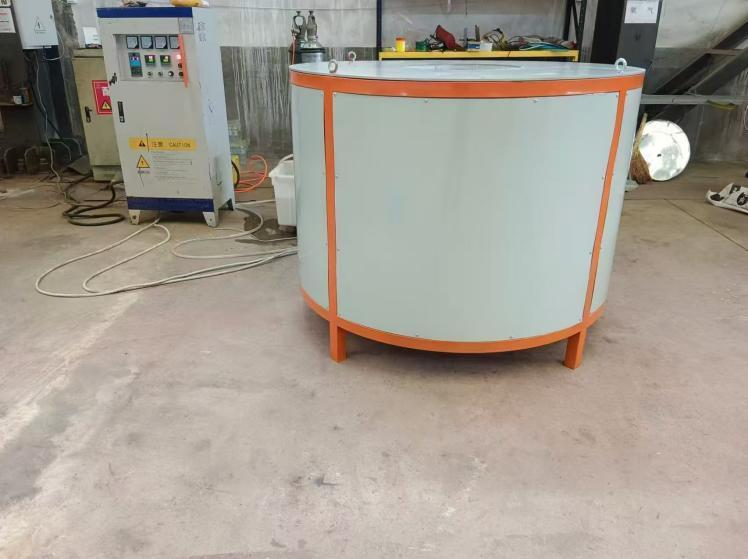

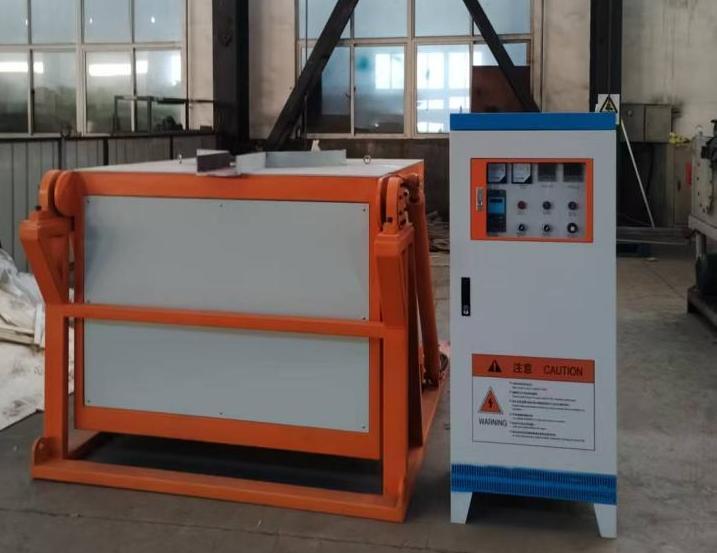

The digital energy-saving electromagnetic aluminum melting furnace is primarily designed for melting and holding aluminum alloys. It utilizes electromagnetic induction heating to generate heat directly within the crucible through magnetic field induction, achieving rapid melting. Compared to traditional resistance furnaces, this induction aluminum melting furnace offers significant energy savings, shorter heating times, faster melting speeds, simple operation, and low maintenance costs. It is widely used as an aluminum alloy melting furnace or holding furnace in foundries and die-casting plants.
Working Principle

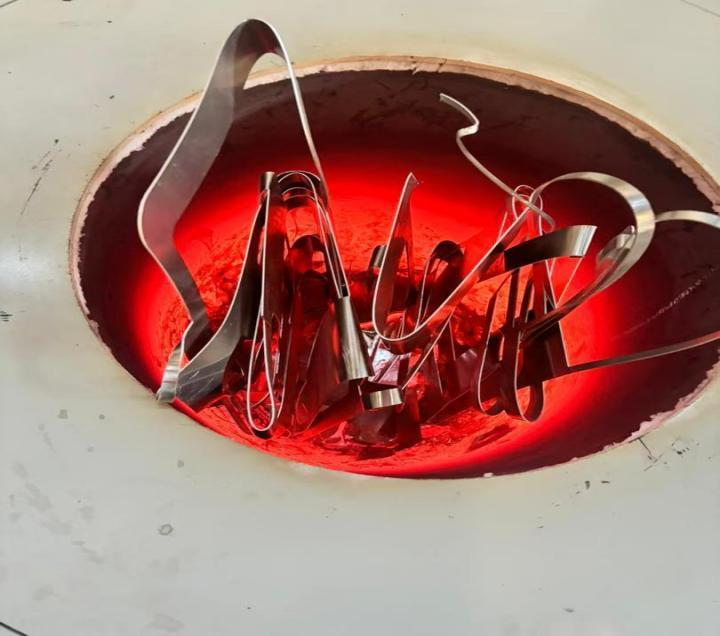

The electromagnetic aluminum melting furnace operates on the principle of electromagnetic induction heating. The induction controller converts electrical energy into thermal energy through the following steps: first, the internal rectifier and filter circuits convert AC power to DC power; then the control circuit converts DC into high-frequency magnetic energy. The high-frequency current passing through the induction coil generates a rapidly changing magnetic field. When the magnetic flux lines pass through the crucible, eddy currents are induced within the crucible material, causing the crucible itself to heat up rapidly and transfer heat to the aluminum alloy, melting it into a liquid state.
Product Advantages
Precise digital temperature control: Employs advanced temperature control algorithms combined with suitable sensors and actuators to achieve accurate temperature regulation. Additionally, by integrating electromagnetic field models and real-time measurement data, predictive and compensatory control can be implemented to improve temperature uniformity inside the furnace. Optimized control systems enhance both work efficiency and product quality.
Superior energy savings: This energy efficient aluminum melting furnace saves approximately 25%–40% more energy than conventional resistance furnaces, about 20%–30% more than medium-frequency furnaces, over 50% more than oil-fired furnaces, and 20%–30% more than bottled gas furnaces.
Fast heating and high efficiency: Energy conversion efficiency exceeds 95%, making it highly energy-saving. Low oxidation rate, high quality molten metal output, excellent heat dissipation, low construction cost, and compact footprint.
High automation and safety: The digital melting furnace is equipped with leakage alarm with emergency stop, spillage alarm with emergency stop, precise heating temperature control, real-time display of molten metal temperature inside the furnace, real-time display of cooling circulating water temperature. The 360° surrounding heating ensures uniform heating of the crucible, resulting in uniform metal liquid composition and reduced burn-off losses.

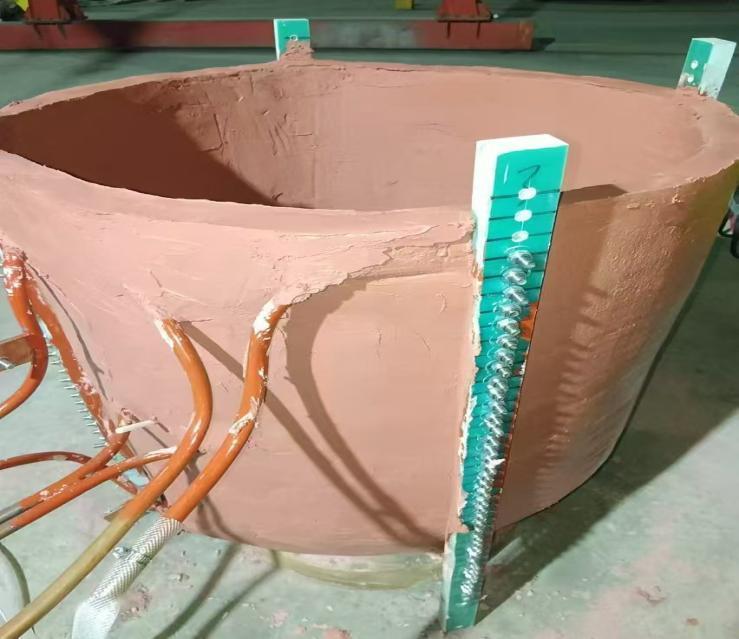

Optimized induction coil design: Various coil specifications with appropriate wall thickness and dimensions are selected to maximize electrical energy utilization.
Low wear and easy maintenance: Minimal component wear, resistant to spillage damage, and easy to maintain. This design effectively addresses the common problems of traditional electric furnaces, such as damage and premature failure due to material leakage.
Summary: The electromagnetic induction aluminum melting furnace combines digital intelligence with energy-efficient induction heating to deliver a reliable, cost-effective, and environmentally friendly solution for aluminum alloy melting and holding. It is the ideal choice for modern foundries aiming to reduce energy costs and improve production efficiency.
Technical Specifications
Crucible dimensions, furnace dimensions, power rating, and capacity for each model.
| No. | Crucible Size (mm) | Furnace Size (mm) | Power (kW) | Capacity (kg) |
|---|---|---|---|---|
| 1 | 565×617 | Φ1320×h1100 | 45 | 200 |
| 2 | 616×640 | Φ1360×h1100 | 60 | 250 |
| 3 | 640×640 | Φ1380×h1100 | 60 | 280 |
| 4 | 710×700 | Φ1460×h1150 | 75 | 350 |
| 5 | 720×740 | Φ1480×h1150 | 75 | 400 |
| 6 | 775×750 | Φ1540×h1150 | 90 | 500 |
| 8 | 775×900 | Φ1540×h1350 | 90 | 600 |
| 9 | 826×900 | Φ1600×h1350 | 120 | 700 |
| 10 | 880×1050 | Φ1660×h1500 | 140 | 840 |
| 11 | 1040×900 | Φ1540×h1350 | 160 | 1000 |
* Other capacities and custom designs are available upon request.
Frequently Asked Questions (FAQ)
What is the warranty period for this furnace?
We offer a one-year comprehensive warranty covering all manufacturing defects and key components (including the induction coil, control system, and crucible). Extended warranty options are also available upon request.How much energy can I really save compared to a traditional resistance furnace?
Depending on your specific operating conditions, our furnace typically saves 25%–40% on electricity consumption compared to conventional resistance furnaces, and even more compared to oil or gas-fired units.What types of aluminum alloys can be melted in this furnace?
This furnace is suitable for a wide range of aluminum alloys, including A356, ADC12, LM系列, and other common casting and die-casting alloys.Is the furnace easy to install and operate?
Yes, the furnace comes with a detailed user manual and is designed for quick installation. The digital control panel offers intuitive operation, and our technical support team provides remote guidance if needed.What maintenance is required?
Routine maintenance includes checking the cooling water system, cleaning the coil and crucible area, and inspecting electrical connections. The furnace is designed for low maintenance, with wear-resistant components and easy access for servicing.Does the furnace have automatic safety shutoff?
Yes, it is equipped with multiple safety features: leakage alarm with emergency stop, over-temperature protection, spillage alarm, and automatic power-off in case of abnormal conditions.Can the furnace be customized for larger capacities?
Absolutely. We offer custom engineering solutions for capacities beyond 1000 kg, as well as special crucible shapes and control systems to meet specific production needs.
Why Choose This Digital Energy-Saving Electromagnetic Aluminum Melting Furnace?
Whether you need a high-efficiency induction aluminum melting furnace to reduce energy costs, or a digital melting furnace with precise temperature control for superior alloy quality, this aluminum alloy melting furnace delivers outstanding performance. Its electromagnetic induction heating technology ensures rapid and uniform melting, while the advanced control system provides real-time monitoring and safety protection. Ideal for foundries and die-casting plants looking for a reliable, energy-saving, and low-maintenance energy efficient aluminum melting furnace that meets modern production demands.
